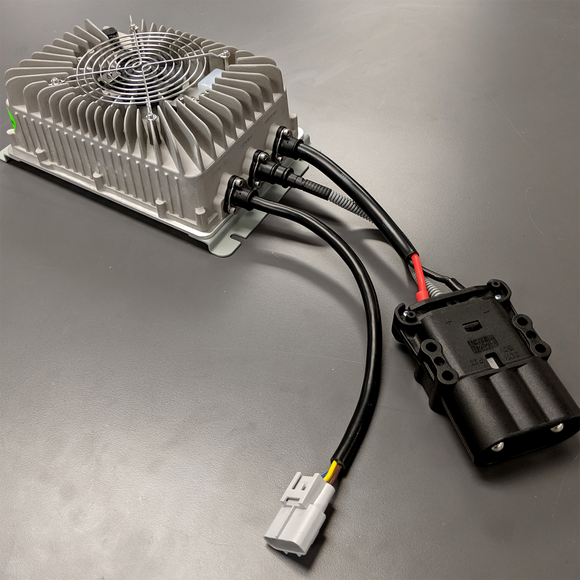

SBC1500 Series: 12/24V Module Service Chargers
View the datasheet here: SBC Series - 1500
Technical Specifications
AC Input Voltage Range:
85-265VAC
AC Input Voltage Nominal:
120VAC / 220VAC
AC Input Frequency:
50-60Hz
AC Power Factor:
> 0.99
DC Output Voltage Nominal:
12V-24V
DC Output Wattage:
Max 1500W
DC Voltage Accuracy:
≤ 0.5%
DC Current Accuracy:
≤ 2%
Conversion Efficiency:
> 93%
Operating Temperature:
-25C to +55C
Storage Temperature:
-40C to +80C
Environmental Rating:
IP 66
Weight:
9lbs
Dimensions:
9.5" x 6.8" x 3.4"
