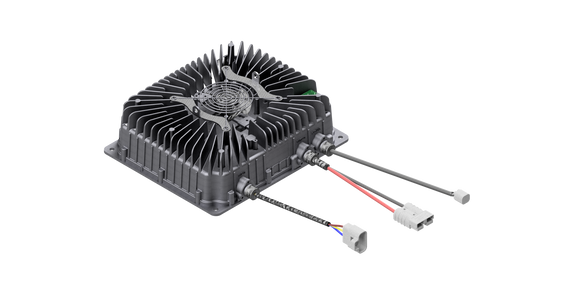

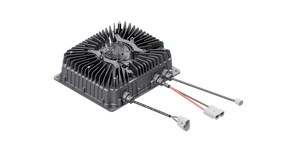

NCC2500 Series: 24-400 Volt Standard Chargers

NCC2500 Series: 24-400 Volt Standard Chargers

Kabair - Montréal, Québec

  • $0.00
Frais de port calculés à la caisse.

Seulement 0 restant!

View the datasheet here: NCC - 2500

Technical Specifications

AC Input Voltage Range:
85-265VAC
AC Input Voltage Nominal:
120VAC / 220VAC
AC Input Frequency:
50-60Hz
AC Power Factor:
> 0.99
DC Output Voltage Nominal:
24V-370V
DC Output Wattage:
Max 2500W
DC Voltage Accuracy:
≤ 0.5%
DC Current Accuracy:
≤ 2%
Conversion Efficiency:
> 95%
Operating Temperature:
-25C to +55C
Storage Temperature:
-40C to +80C
Environmental Rating:
IP 66
Weight:
12lbs
Dimensions:
10.8" x 10.3" x 3.4"
