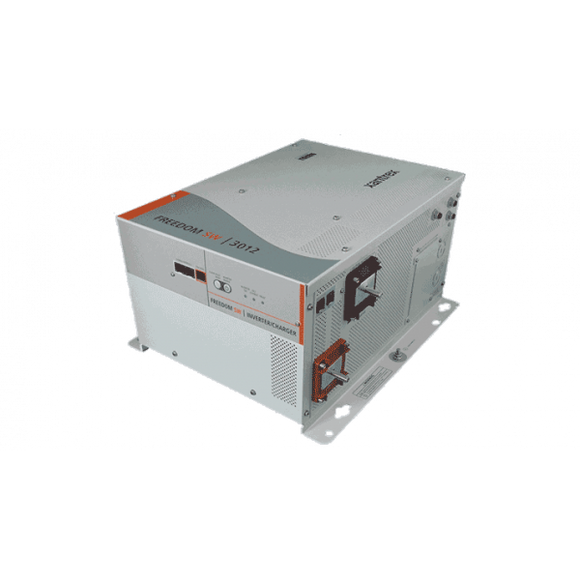

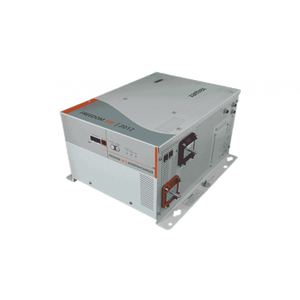

Inverter Charger SW3012 Series
View the User Guide here: Xantrex™ Freedom SW 3012
Technical Specifications
AC Input Voltage Range:
85-140VAC
AC Input Voltage Nominal:
120VAC
AC Input Frequency:
60Hz
AC Power Factor:
> 0.98
DC Output Voltage Nominal:
12V
DC Output Wattage:
Max 2400W
DC Voltage Accuracy:
≤ 0.5%
DC Current Accuracy:
≤ 2%
Conversion Efficiency:
> 85%
Operating Temperature:
-20C to +60C
Storage Temperature:
-40C to +85C
Environmental Rating:
IP 40
