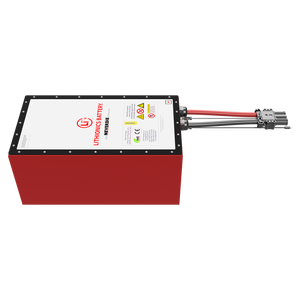

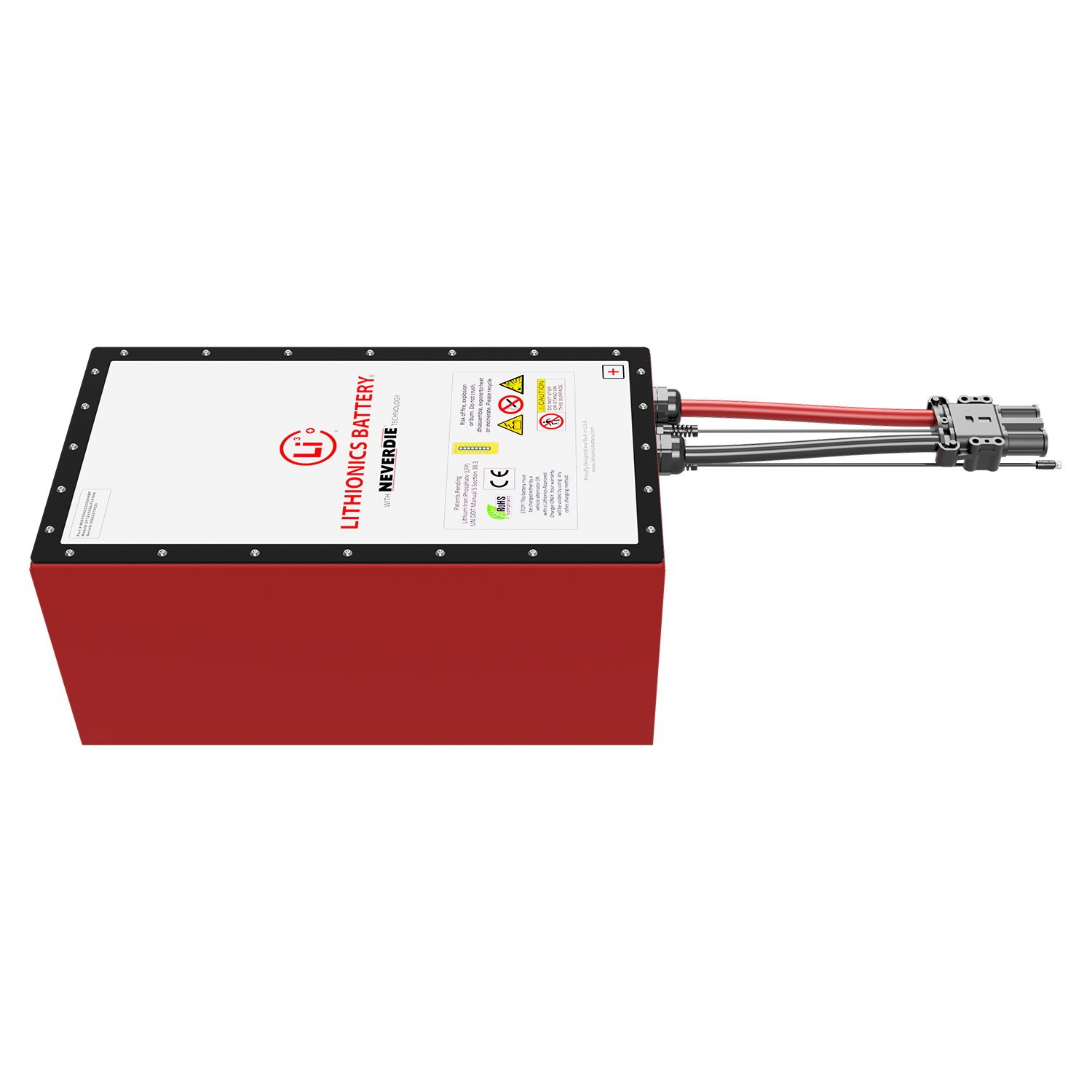

92.8V 75AH F24 GT Module

Kabair - Montréal, Québec

  • $0.00
Frais de port calculés à la caisse.

Seulement 0 restant!

MODEL NUMBER: GT92.8V75A-F24-DIN-MODULE

Download data sheet

ENERGY:

75 AMP HOURS

PULSE AMPS: 750 (1 SEC)

6960 WATT-HOURS

EXTERNAL BMS REQUIRED

BMS SOLD SEPARATELY. SEE BMS DATA SHEET PROVIDED BY LITHIONICS BATTERY®.

Item

Model:
GT92.8V75A-F24-DIN-MODULE
Nominal Voltage:
92.8V
Nominal Capacity:
75 AH
Nominal Watt Hours:
6960 WH
Internal Resistance:
<300 milliohms
Charge

Charging temperature range:
32F/0C to 113F/45C
Charge voltage:
104.4V
Recommended float charge voltage:
97.2V
Recommended charge current:
50A
Allowed max charge current:
75A
Discharge

Discharging temperature range:
-4F/-20C to 131F/55C
Output Voltage Range:
84.1V - 97.2V
Recommended discharge current:
75A
Max discharge current:
150A
Pulse discharge current:
750 Amps (1 SEC)
Discharge cut-off voltage:
NeverDie® Power Reserve at 87.0V Low Voltage Cut-Off at 84.1V
Mechanical characteristics

Length:
24.0in
Width:
13.0in
Height:
11.1in
Weight:
Approx. 155lbs (70.3kg)
Storage

Storage Temperature & Humidity Range:
< 1 Month
-4~95°F (-20~35°C), 45~75%RH

< 3 Months
14~86°F (-10~30°C), 45~75%RH

Recommended storage
59~95°F (15~35°C),45%RH~75%RH
Self-discharge rate:
Residual capacity
≤3% per month; ≤15% per year

Reversible capacity
≤1.5%per month; ≤8% per year
Long Term Storage:

If the battery needs to be stored for > 3 months the voltage should be 95.7V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.
