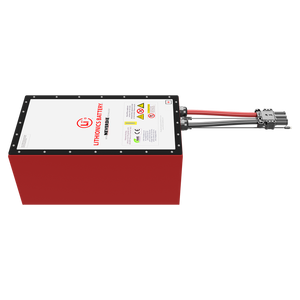

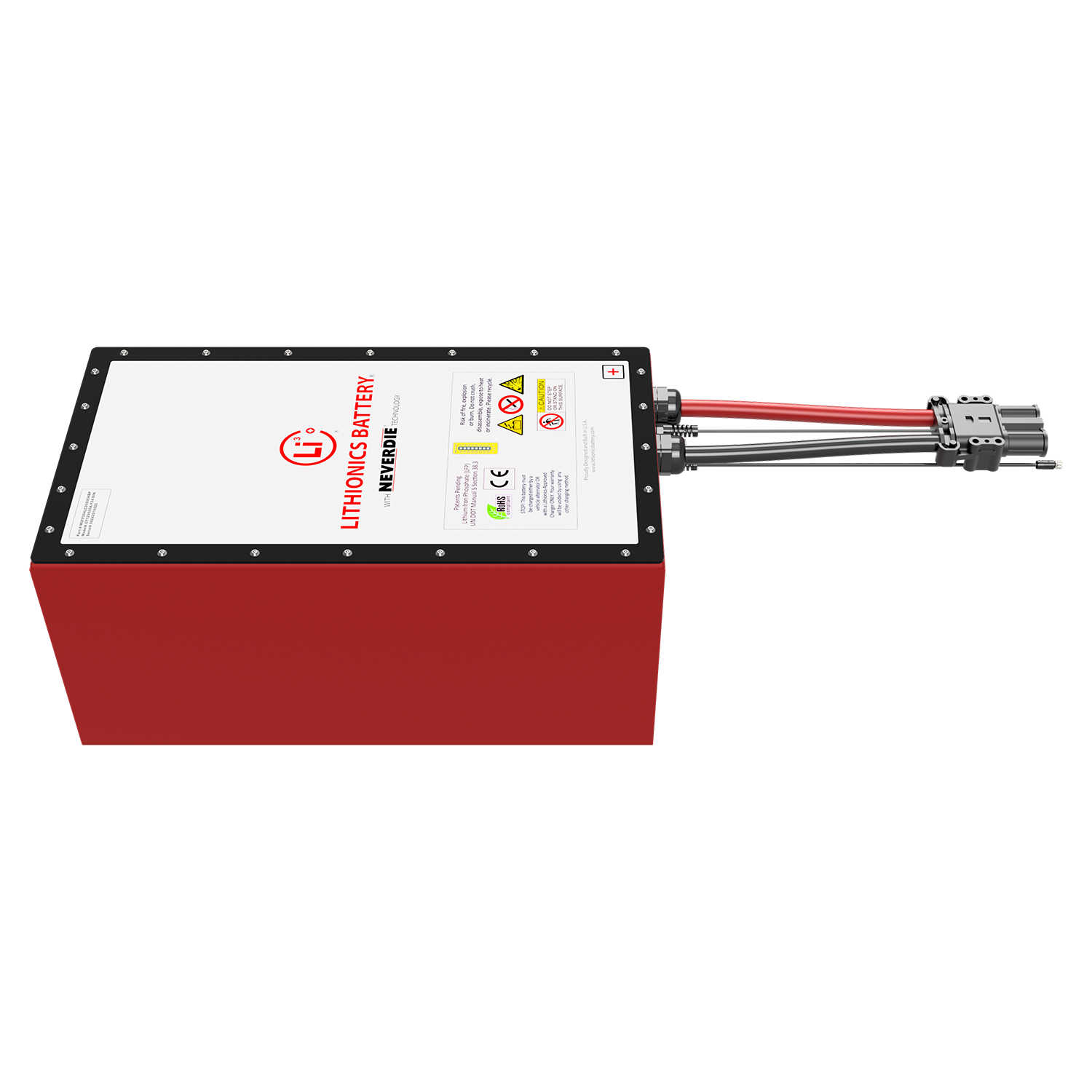

51V 150AH F24 GT Module
MODEL NUMBER: GT51V150A-F24-DIN-MODULE
ENERGY:
150 AMP HOURS
PULSE AMPS: 1500 (1 SEC)
7680 WATT-HOURS
EXTERNAL BMS REQUIRED
BMS SOLD SEPARATELY. SEE BMS DATA SHEET PROVIDED BY LITHIONICS BATTERY®.
Item
Model:
GT51V150A-F24-DIN-MODULE
Nominal Voltage:
51.2V
Nominal Capacity:
150 AH
Nominal Watt Hours:
7680 WH
Internal Resistance:
<300 milliohms
Charge
Charging temperature range:
32F/0C to 113F/45C
Charge voltage:
57.6V
Recommended float charge voltage:
53.6V
Recommended charge current:
75A
Allowed max charge current:
150A
Discharge
Discharging temperature range:
-4F/-20C to 131F/55C
Output Voltage Range:
46.4V to 53.6V
Recommended discharge current:
150A
Max discharge current:
225A
Pulse discharge current:
1500 Amps (1 SEC)
Discharge cut-off voltage:
NeverDie® Power Reserve @ 48.00V Low-Voltage Cut-Off @46.4V
Mechanical characteristics
Length:
24.0in
Width:
13.0in
Height:
11.1in
Weight:
Approx. 160lbs (72.6kg)
Storage
Storage Temperature & Humidity Range:
< 1 Month
-4~95°F (-20~35°C), 45~75%RH
< 3 Months
14~86°F (-10~30°C), 45~75%RH
Recommended storage
59~95°F (15~35°C),45%RH~75%RH
Self-discharge rate:
Residual capacity
≤3% per month; ≤15% per year
Reversible capacity
≤1.5%per month; ≤8% per year
Long Term Storage:
If the battery needs to be stored for > 3 months the voltage should be 52.8V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.
