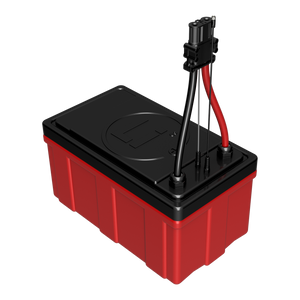

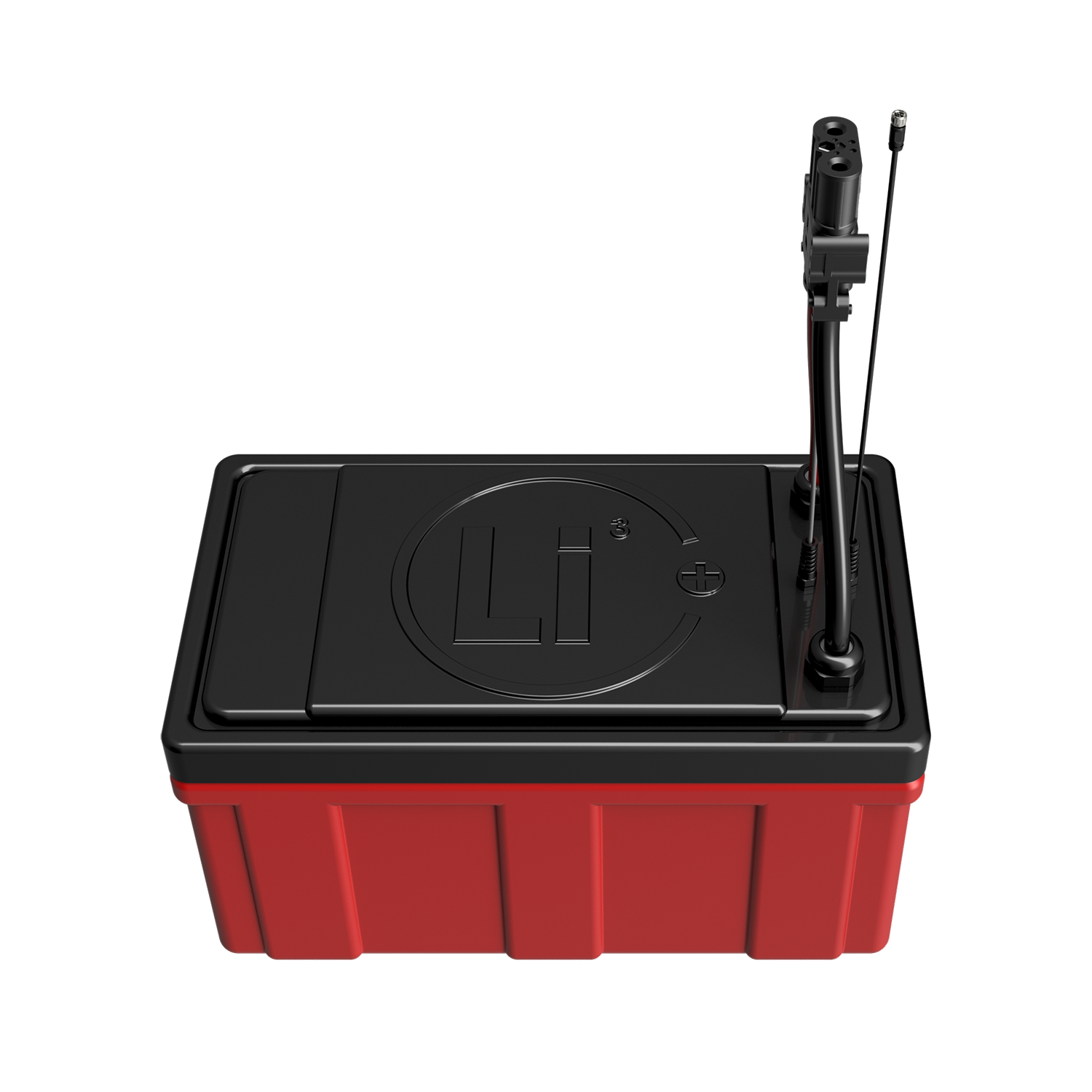

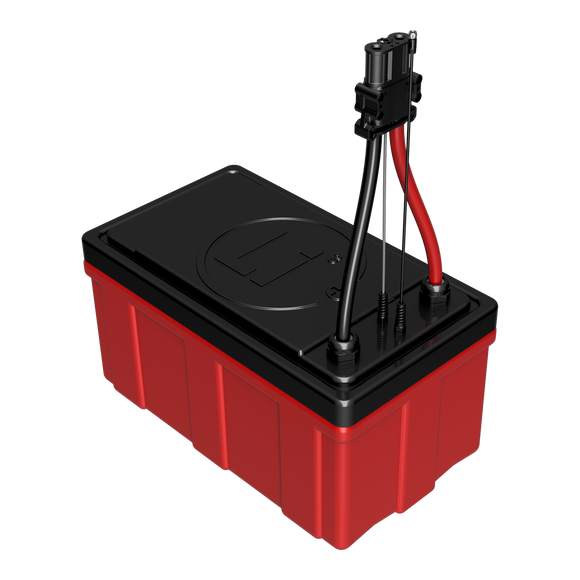

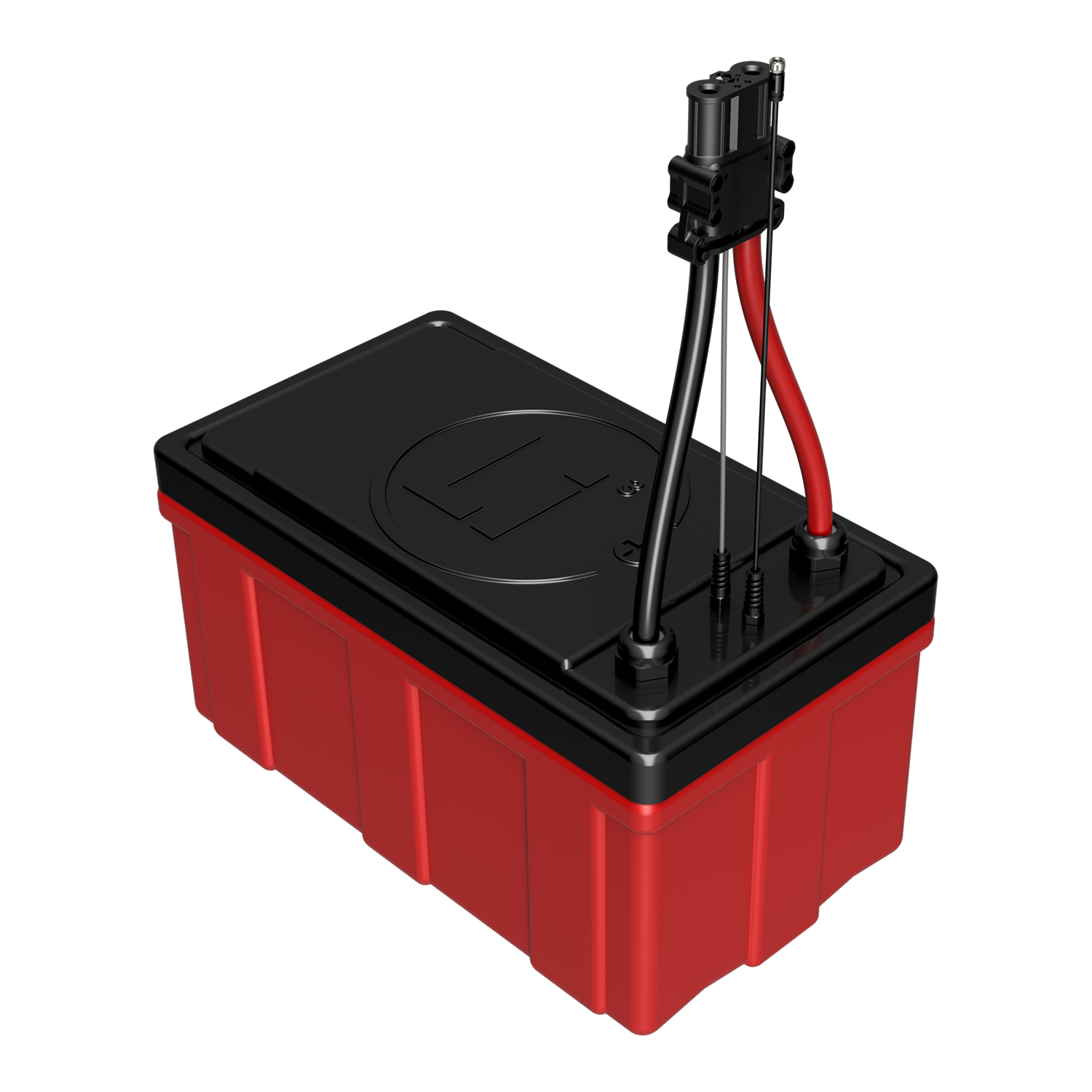

48V 150AH 8D GT Module

Kabair - Montréal, Québec

  • $0.00
Frais de port calculés à la caisse.

Seulement 0 restant!

MODEL NUMBER: GT48V150A-8D-DIN-MODULE

Download data sheet

ENERGY:

150 AMP HOURS

PULSE AMPS: 1500 (1 SEC)

7200 WATT-HOURS

EXTERNAL BMS REQUIRED

BMS SOLD SEPARATELY. SEE BMS DATA SHEET PROVIDED BY LITHIONICS BATTERY®.

Item

Model:
GT48V150A-8D-DIN-MODULE
Nominal Voltage:
48V
Nominal Capacity:
150 AH
Nominal Watt Hours:
7200 WH
Internal Resistance:
<300 milliohms
Charge

Charging temperature range:
32F/0C to 113F/45C
Charge voltage:
54.75V
Recommended float charge voltage:
50.25V
Recommended charge current:
75A
Allowed max charge current:
150A
Discharge

Discharging temperature range:
-4F/-20C to 131F/55C
Output Voltage Range:
43.5V to 50.25V
Recommended discharge current:
150A
Max discharge current:
225A
Pulse discharge current:
1500 Amps (1 SEC)
Discharge cut-off voltage:
NeverDie® Power Reserve @ 45.00V Low-Voltage Cut-Off @43.5V
Mechanical characteristics

Length:
22.95in
Width:
13.08in
Height:
12.04in
Weight:
Approx. 148lbs (67.1kg)
Storage

Storage Temperature & Humidity Range:
< 1 Month
-4~95°F (-20~35°C), 45~75%RH

< 3 Months
14~86°F (-10~30°C), 45~75%RH

Recommended storage
59~95°F (15~35°C),45%RH~75%RH
Self-discharge rate:
Residual capacity
≤3% per month; ≤15% per year

Reversible capacity
≤1.5%per month; ≤8% per year
Long Term Storage:

If the battery needs to be stored for > 3 months the voltage should be 49.5V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.
