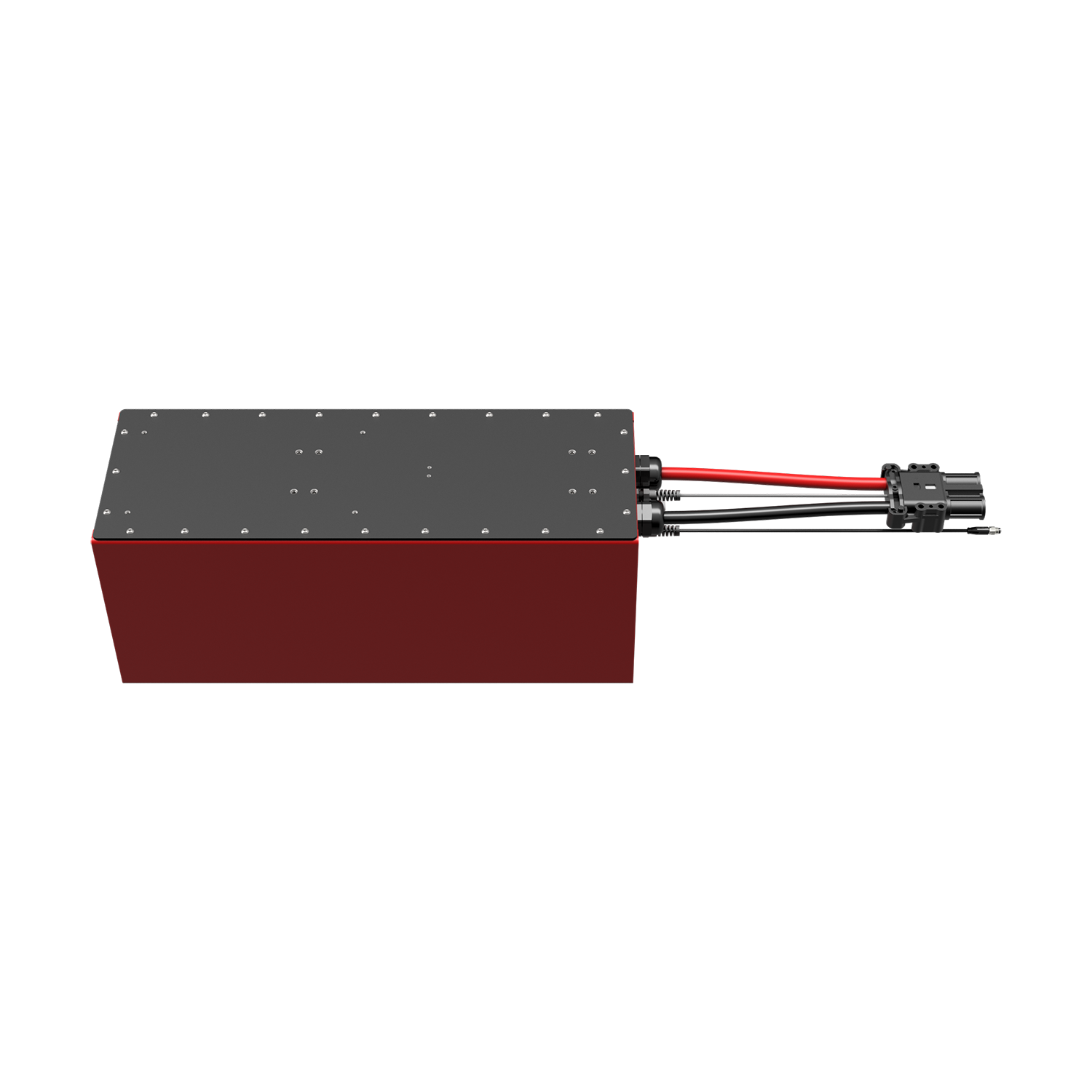

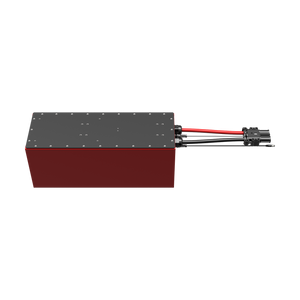

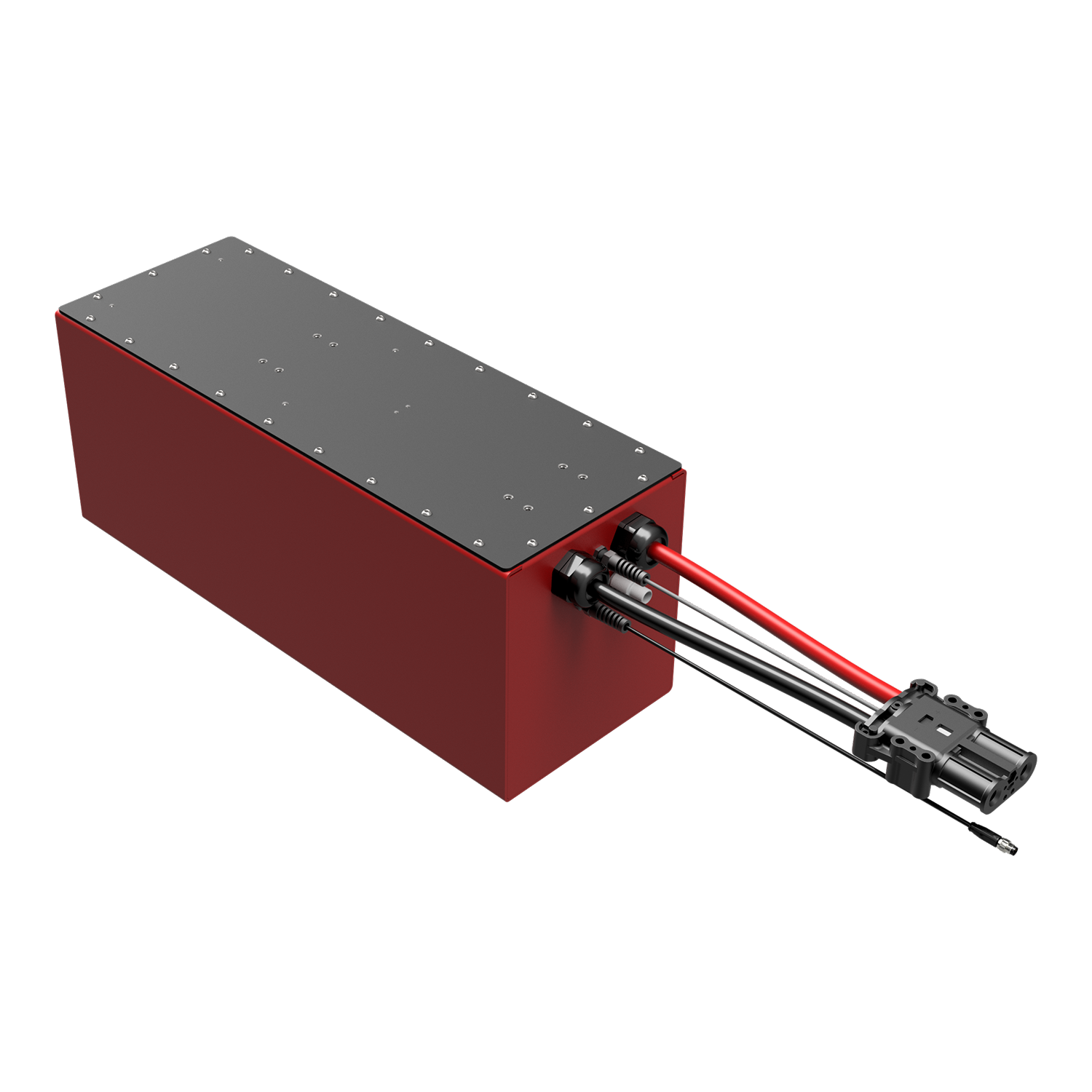

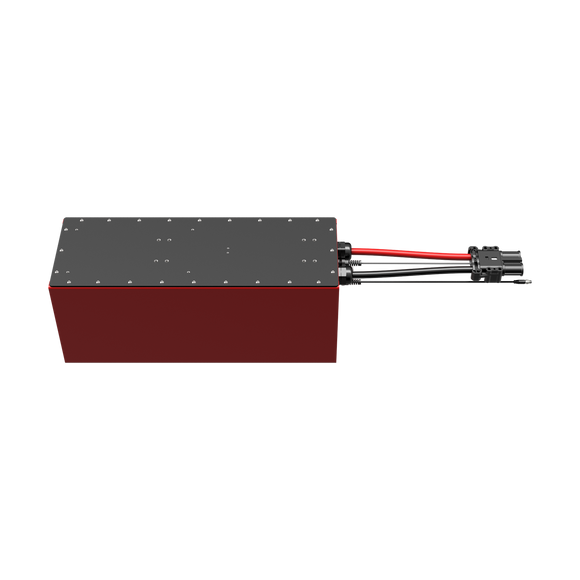

12V 555AH F27 GTX Module

Kabair - Montréal, Québec

  • $0.00
Frais de port calculés à la caisse.

Seulement 0 restant!

MODEL NUMBER: GTX12V555A-F27-DIN-MODULE

Download data sheet

ENERGY:

555 AMP HOURS

PULSE AMPS: 1100 (1 SEC)

7100 WATT-HOURS

EXTERNAL BMS REQUIRED

BMS SOLD SEPARATELY. SEE BMS DATA SHEET PROVIDED BY LITHIONICS BATTERY®.

Item

Model:
GTX12V555A-F27-DIN-MODULE
Nominal Voltage:
12.8V
Nominal Capacity:
555 AH
Nominal Watt Hours:
7,100 WH
Internal Resistance:
<300 milliohms
Charge

Charging temperature range:
32F/0C to 131F/55C
Charge voltage:
14.6V
Recommended float charge voltage:
13.4V
Recommended charge current:
285A
Allowed max charge current:
400A
Discharge

Discharging temperature range:
-4F/-20C to 131F/55C
Output Voltage Range:
11.6V to 13.4V
Recommended discharge current:
285A
Max discharge current:
400A
Pulse discharge current:
1100 Amps (1 SEC)
Discharge cut-off voltage:
NeverDie® Power Reserve @ 12.0V Low-Voltage Cut-Off @11.6V
Mechanical characteristics

Length:
27.0in
Width:
9.0in
Height:
10.2in
Weight:
Approx. 119lbs (54kg)
Storage

Storage Temperature & Humidity Range:
< 1 Month
-4~95°F (-20~35°C), 45~75%RH

< 3 Months
14~86°F (-10~30°C), 45~75%RH

Recommended storage
59~95°F (15~35°C),45%RH~75%RH
Self-discharge rate:
Residual capacity
≤3% per month; ≤15% per year

Reversible capacity
≤1.5%per month; ≤8% per year
Long Term Storage:

If the battery needs to be stored for > 3 months the voltage should be 13.2V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.
