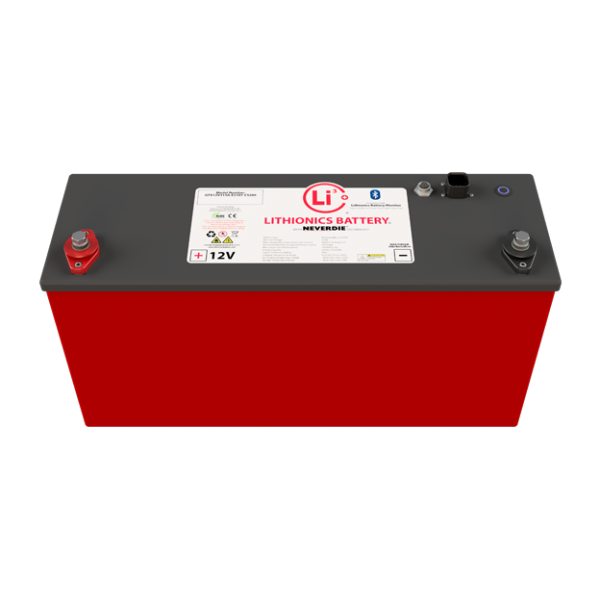

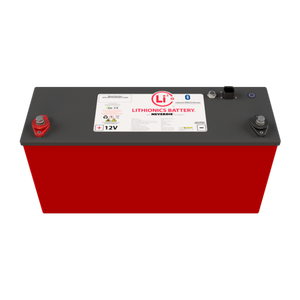

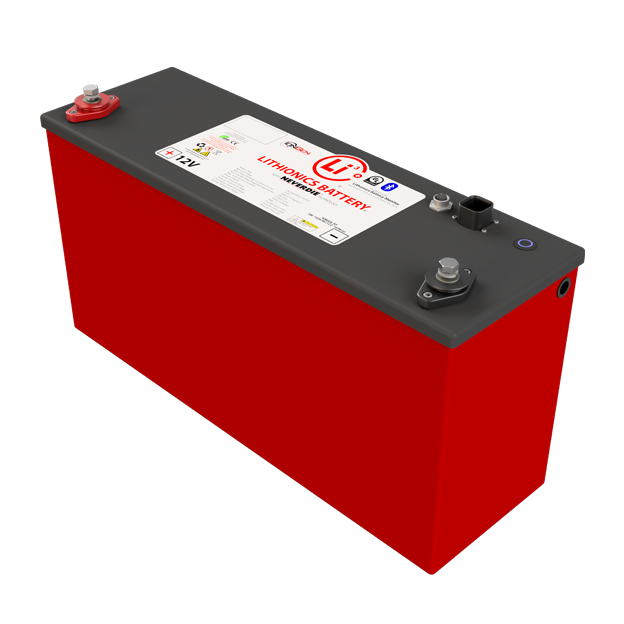

12V 315AH E2107 GTX Battery Consumer Model
MODEL NUMBER: GTX12V315A-E2107-CS200
Consumer Model: Requires a Fuse and Fuse Holder
ENERGY:
315 AMP HOURS
PULSE AMPS: 1200 (1 second)
4032 WATT-HOURS
INTERNAL NEVERDIE® BMS FEATURES:
NeverDie® Power Reserve (Spare Fuel) for Hotel Loads and Engine Cranking
Over-Charge, Over-Discharge and Short-Circuit Protection (LVC, HVC, SCC)
Low/High Temperature Charge/Discharge Protection
Internal Heating Kit: Permits Charging as low as -20C/-4F
Pushbutton On/Off switch for Safety and Storage
Battery Gauge and Status Codes for Health Monitoring
Bluetooth wireless telemetry with Lithionics Battery iOS and Android app
CANbus telemetry in the RVIA RV-C format (M12)

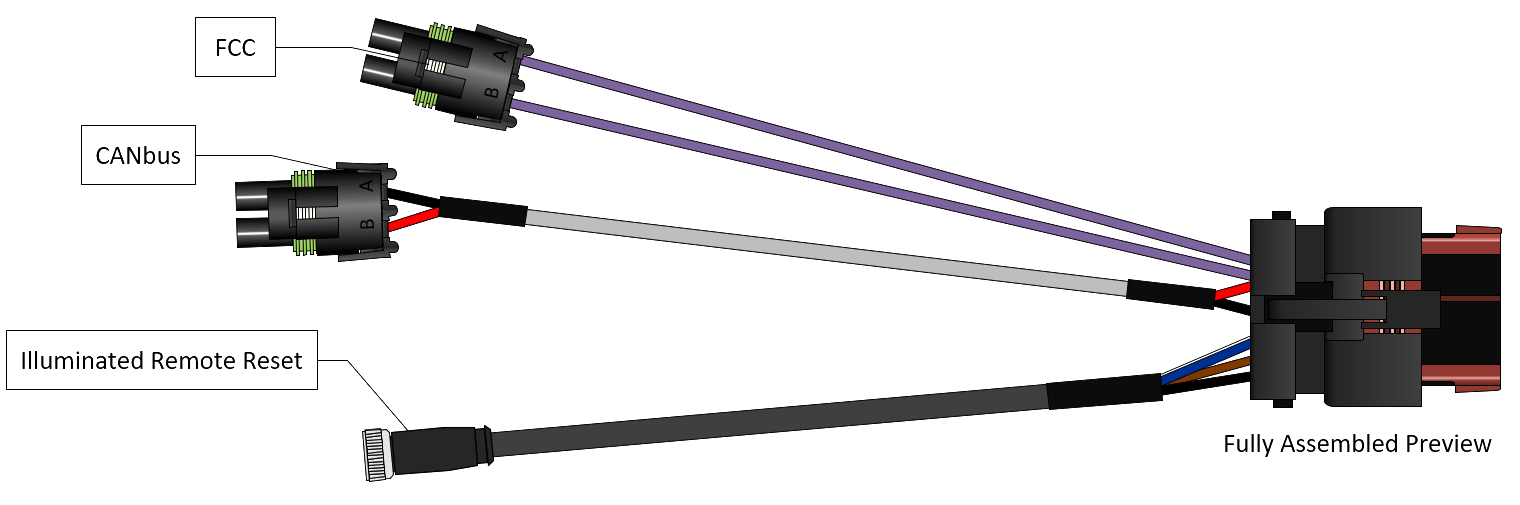

An alternator Field Control Circuit (FCC) (AMPSEAL8)
Remote LED illuminated On/Off Power switch (AMPSEAL8)
CLICK HERE FOR HEATER KIT PERFORMANCE REPORT
CLICK HERE FOR REMOTE CONTROL LED OPERATION SWITCH
Application Note: Compatible with a Maximum Inverter Size of 3000 Watts. Do Not Connect to Larger Inverters or to Parallel-Connected Inverters.
External BMS-module kit recommended for Marine use.
