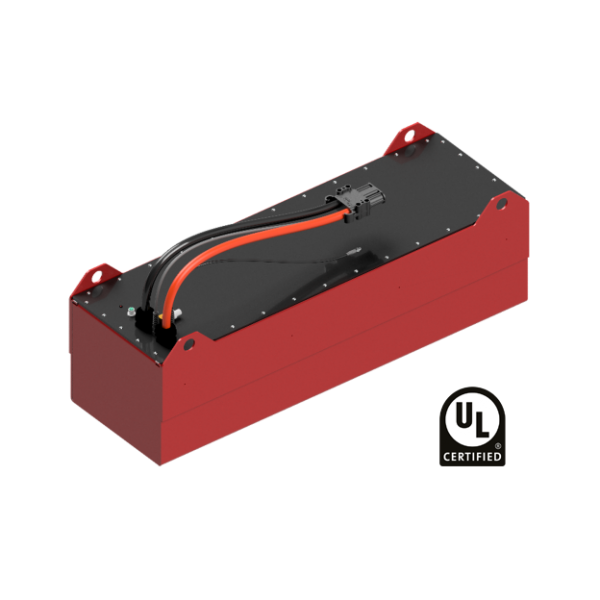

12V 1050AH F41 GTX UL Module
MODEL NUMBER: GTX12V1050A-F41-DIN-MODULE-UL
ENERGY:
1050 AMP HOURS
PULSE AMPS: 2000 (1SEC)
13440 WATT-HOURS
EXTERNAL BMS REQUIRED
BMS SOLD SEPARATELY. SEE BMS DATA SHEET PROVIDED BY LITHIONICS BATTERY®.
Item
Model:
GTX12V1050A-F41-DIN-MODULE-UL
Nominal Voltage:
12.8V
Nominal Capacity:
1050 AH
Nominal Watt Hours:
13440 WH
Internal Resistance:
<300 milliohms
Charge
Charging temperature range:
32F/0C to 131F/55C
Charge voltage:
14.4V
Recommended float charge voltage:
13.4V
Recommended charge current:
200A
Allowed max charge current:
300A
Discharge
Discharging temperature range:
-4F/-20C to 131F/55C
Output Voltage Range:
11.6V to 13.4V
Recommended discharge current:
300A
Max discharge current:
350A
Pulse discharge current:
2000 Amps (1 SEC)
Discharge cut-off voltage:
NeverDie® Power Reserve @ 12.00V Low-Voltage Cut-Off @11.60V
Mechanical characteristics
Length:
41.0in
Width:
13.37in
Height:
12.85in
Weight:
Approx. 259lbs (117kg)
Storage
Storage Temperature & Humidity Range:
< 1 Month
-4~95°F (-20~35°C), 45~75%RH
< 3 Months
14~86°F (-10~30°C), 45~75%RH
Recommended storage
59~95°F (15~35°C),45%RH~75%RH
Self-discharge rate:
Residual capacity
≤3% per month; ≤15% per year
Reversible capacity
≤1.5%per month; ≤8% per year
Long Term Storage:
If the battery needs to be stored for > 3 months the voltage should be 13.2V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.
