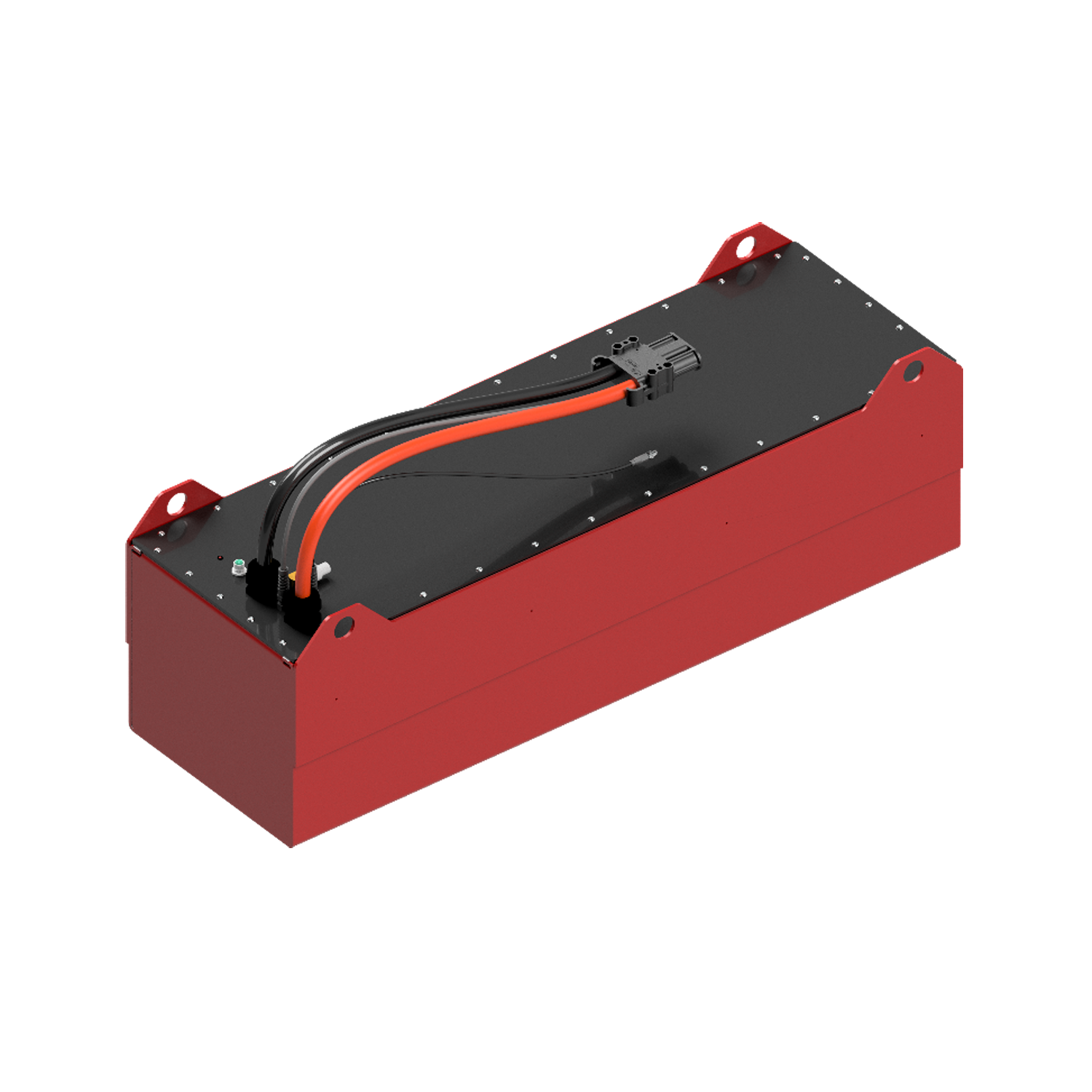

51V 315AH F41 GTX Module

Kabair - Montréal, Québec

  • $0.00
Frais de port calculés à la caisse.

Seulement 0 restant!

MODEL NUMBER: GTX51V315A-F41-DIN-MODULE

Download data sheet

ENERGY:

315 AMP HOURS

PULSE AMPS: 3150 (1SEC)

16128 WATT-HOURS

EXTERNAL BMS REQUIRED

BMS SOLD SEPARATELY. SEE BMS DATA SHEET PROVIDED BY LITHIONICS BATTERY®.

Item

Model:
GTX51V315A-F41-DIN-MODULE
Nominal Voltage:
51.2V
Nominal Capacity:
315 AH
Nominal Watt Hours:
16128 WH
Internal Resistance:
<300 milliohms
Charge

Charging temperature range:
32F/0C to 131F/55C
Charge voltage:
58.4V
Recommended float charge voltage:
53.6V
Recommended charge current:
150A
Allowed max charge current:
300A
Discharge

Discharging temperature range:
-4F/-20C to 131F/55C
Output Voltage Range:
46.4V to 58.4V
Recommended discharge current:
150A
Max discharge current:
300A
Pulse discharge current:
3150 Amps (1 SEC)
Discharge cut-off voltage:
NeverDie® Power Reserve @ 48.00V Low-Voltage Cut-Off @46.4V
Mechanical characteristics

Length:
41.0in
Width:
13.37in
Height:
12.85in
Weight:
Approx. 302lbs (137kg)
Storage

Storage Temperature & Humidity Range:
< 1 Month
-4~95°F (-20~35°C), 45~75%RH

< 3 Months
14~86°F (-10~30°C), 45~75%RH

Recommended storage
59~95°F (15~35°C),45%RH~75%RH
Self-discharge rate:
Residual capacity
≤3% per month; ≤15% per year

Reversible capacity
≤1.5%per month; ≤8% per year
Long Term Storage:

If the battery needs to be stored for > 3 months the voltage should be 52.8V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.
